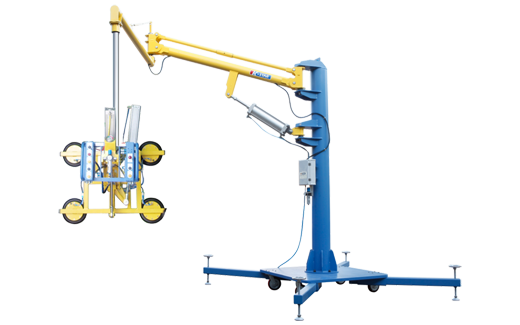

Jib Crane > MACHINERY

1. Max weight:
Fixed type (250Kg)
Mobile (150Kg)
2. Travel distance: 4,000mm
3. Max height: 3,500mm
4. Turning Radius: 240'
5. Adsorption/detachment: Ejector method (Air)
6. Up and down: cylinder type
7. Large adsorbent: custom made by order.

1. It required only pneumatic power
2. Operator requires only minimum
amount of effort to move an object
3. It is almost maintanence-free
4. Additional features of Tilting and
Rotating can be added
5. Application
- Bags
- Marble

1. It requires between 6~8 bar of
compressed air
2. We provide Vacuum lifter separately
3. Space needs to be secured when installing a fixed type.
4. Do not transfer more than the proper load.
